Model STOCK CONTAINMENT BARRIER
A B C D E F G H J K, # of Holes
Number mm mm mm mm mm mm mm mm mm mm   X   qty
inch inch inch inch inch inch inch inch inch inch
MTC-0.1-SB 36 28 20 15 26 28 4 6 1 4.5   X   4
1.42 1.102 0.79 0.591 1.02 1.10 0.16 0.24 0.039 0.18
MTC-0.3-SB 49 40 30 24 30 32 5 7 1 5.5   X   4
1.93 1.575 1.18 0.945 1.18 1.26 0.20 0.28 0.039 0.22
MTC-1-SB 55 46 36 30 35 37 5 7 1 5.5   X   6
2.17 1.811 1.42 1.181 1.38 1.46 0.20 0.28 0.039 0.22
MTC-3-SB 66 55 44 38 45 50 6.5 10 1 6.6   X   6
2.60 2.165 1.73 1.496 1.77 1.97 0.26 0.39 0.039 0.26
MTC-10-SB 96 83 73 60 60 66 15 6 1 6.6   X   6
3.78 3.268 2.87 2.362 2.36 2.60 0.59 0.24 0.039 0.26

Model Max Weight Torque Torque Inner Hub Outer Hub
Speed (total) (nominal) (peak) A B C E F G H I J K L M N O
Number rpm kg Nm Nm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
lb in.lbs in.lbs inch inch inch inch inch inch inch inch inch inch inch inch inch inch
MTC-16 13000 3.0 16 26 58 26 14 20 62 5 16.3 66 40 19 90 120 6 21.8
6.6 140 230 2.28 1.02 0.551 0.79 2.44 0.20 0.64 2.60 1.57 0.748 3.54 4.72 0.24 0.86
MTC-22 9400 7 22 35 88 50 20 30 50 6 22.8 97 50 24 124 120 8 27.3
16 200 310 3.47 1.97 0.787 1.18 1.97 0.24 0.90 3.82 1.97 0.945 4.88 4.72 0.31 1.07
MTC-30 9400 8 30 48 88 50 24 30 62 8 27.3 97 50 28 124 130 8 31.3
18 265 425 3.47 1.97 0.945 1.18 2.44 0.31 1.07 3.82 1.97 1.102 4.88 5.12 0.31 1.23
MTC-50 7300 12 50 80 122 80 30 30 50 8 33.3 132 60 38 160 130 10 41.3
26 450 708 4.80 3.15 1.181 1.181 1.97 0.31 1.31 5.20 2.36 1.496 6.30 5.12 0.39 1.63
MTC-65 7300 15 65 100 122 80 30 40 65 8 33.3 132 60 38 160 145 10 41.3
33 575 885 4.80 3.15 1.181 1.57 2.56 0.31 1.31 5.20 2.36 1.496 6.30 5.71 0.39 1.63
MTC-80 6500 19 80 130 142 90 35 40 65 10 38.3 152 80 42 180 165 12 45.3
42 710 1151 5.59 3.54 1.378 1.57 2.56 0.39 1.51 5.98 3.15 1.654 7.09 6.50 0.47 1.78
MTC-110 6500 22 110 165 142 90 35 40 80 10 38.3 152 80 42 180 180 12 45.3
48 1000 1460 5.59 3.54 1.378 1.57 3.15 0.39 1.51 5.98 3.15 1.654 7.09 7.09 0.47 1.78
MTC-140 6500 29 140 210 142 90 40 40 110 12 43.3 152 80 48 180 210 14 51.8
64 1250 1859 5.59 3.54 1.575 1.57 4.33 0.47 1.70 5.98 3.15 1.890 7.09 8.27 0.55 2.04
Model Max Weight Torque Torque Inner Hub Outer Hub
Speed (total) (nominal) (peak) A B C D E F G H I J K L M
Number rpm kg Nm Nm mm mm mm mm mm mm mm mm mm mm mm mm mm
lb in.lbs in.lbs inch inch inch inch inch inch inch inch inch inch inch inch inch
MTC-180 6200 23 180 290 142 90 40 60 50 140 12 43.8 152 156 170 190 180
51 1600 2567 5.59 3.54 1.575 2.36 1.97 5.51 0.47 1.72 5.98 6.142 6.69 7.48 7.09
MTC-220 6200 26 220 330 142 90 48 70 60 160 14 52.3 152 156 170 190 200
57 2000 2921 5.59 3.54 1.890 2.76 2.36 6.30 0.55 2.06 5.98 6.142 6.69 7.48 7.87
MTC-280 6200 30 280 380 142 90 48 90 60 180 14 52.3 152 156 170 190 230
66 2500 3363 5.59 3.54 1.890 3.54 2.36 7.09 0.55 2.06 5.98 6.142 6.69 7.48 9.06

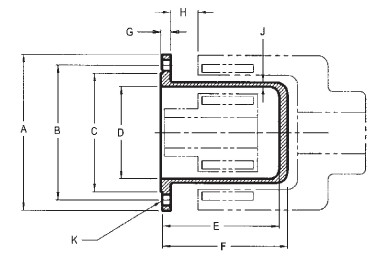

      MTC-0.1-SB thru MTC-10SB (Optional Containment Barrier)

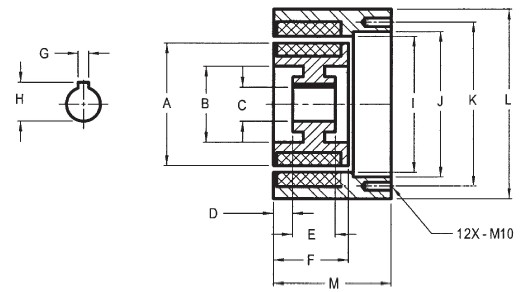

      MTC-180 thru MTC-280

      MTC-16 thru MTC-140

Model Max Torque Torque Weight Inner Hub Outer Hub
Speed (nominal) (peak) (total) A B C D E F G H I
Number rpm Nm Nm kg mm mm mm mm mm mm mm mm mm
in.lbs in.lbs lb inch inch inch inch inch inch inch inch inch
MTC-0.1 44000 0.1 0.2 0.1 12.7 5 7 15 6 18 26 19 30
1.0 1.75 0.2 0.50 0.197 0.28 0.59 0.236 0.71 1.02 0.75 1.18
MTC-0.3 26000 0.3 0.5 0.3 22 8 8 16 8 28 44 22 36
2.6 4.5 0.6 0.87 0.315 0.31 0.63 0.315 1.10 1.73 0.87 1.42
MTC-1 22000 1.0 1.5 0.8 28 10 12 20 10 35 52 28 44
9 13 1.7 1.10 0.394 0.47 0.79 0.394 1.38 2.13 1.10 1.73
MTC-3 18000 3 3.5 1.0 35 12 16 25 12 43 64 35 56
27 30 2.2 1.38 0.472 0.63 0.98 0.472 1.69 2.52 1.38 2.20
MTC-10 13000 10 12 2.5 58 16 20 35 20 66 90 50 80
90 105 5.5 2.28 0.630 0.79 1.38 0.787 2.60 3.54 1.97 3.15
       Shown in Metric
       Shown in English measure
       Shown in Metric
       Shown in English measure
       Shown in Metric
       Shown in English measure
       Shown in Metric
       Shown in English measure

Technical Data :

Inner Cylinder / Disc 300 stainless steel,
 hermetically sealed.
Outer Cylinder / Disc mild steel, magnets
encapsulated
Magnet(Nickel Plated) NdFeB
Operating Temp 140°C (284°F)
Remarks The couplings are also available with SmCO type magnets, rated up to 280°C(536°F).

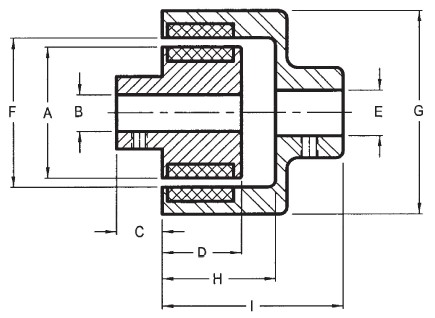

      MTC-0.1 thru MTC-10
