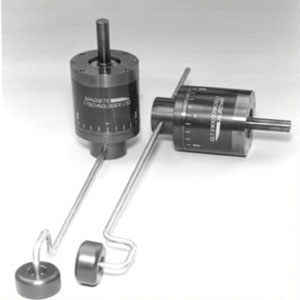

Magnetic Brake With Follower Arm
These provide constant tension when used in dedicated payoff applications. The device is ideal for paying off wire, cable and a variety of films and tapes where constant tension is required.
Available in 3 torque ranges.
Features
Bearing-supported magnetic cap for smooth arm movement
Bearing-mounted Delrin wheel
Stainless-steel self centering adjustment arm
All magnetic, no electricity, no wearing parts
Theory

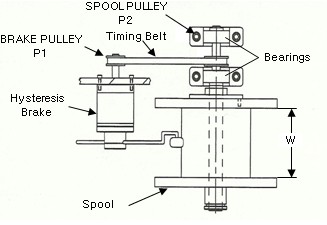

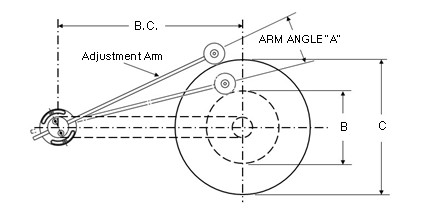

The magnetic brake is mounted as shown, central to payoff spool at a fixed centerline distance (CD) which is determined by pulley ratio from brake to spool shaft and timing belt. The adjustment arm attached to magnetic brake has a Delrin wheel riding on diameter C following material down as material pays off to B. This arm angle change decreases the braking torque to maintain constant line tension throughout spool payoff from C to B. The pulley ratios determines the final torque transferred to spool shaft to achieve desired line tension.
These provide constant tension when used in dedicated payoff applications. The device is ideal for paying off wire, cable and a variety of films and tapes where constant tension is required.
Available in 3 torque ranges.
Features
Bearing-supported magnetic cap for smooth arm movement
Bearing-mounted Delrin wheel
Stainless-steel self centering adjustment arm
All magnetic, no electricity, no wearing parts
Theory
The magnetic brake is mounted as shown, central to payoff spool at a fixed centerline distance (CD) which is determined by pulley ratio from brake to spool shaft and timing belt. The adjustment arm attached to magnetic brake has a Delrin wheel riding on diameter C following material down as material pays off to B. This arm angle change decreases the braking torque to maintain constant line tension throughout spool payoff from C to B. The pulley ratios determines the final torque transferred to spool shaft to achieve desired line tension.
For best operation unit should be set up for
100% and adjust down the torque scale to desired ratio of customer
spool. This will prevent cogging or uneven magnetic tension during
payoff. MTL applications engineers will assist with setup and layout
drawings for customer spools based on supplied specs.

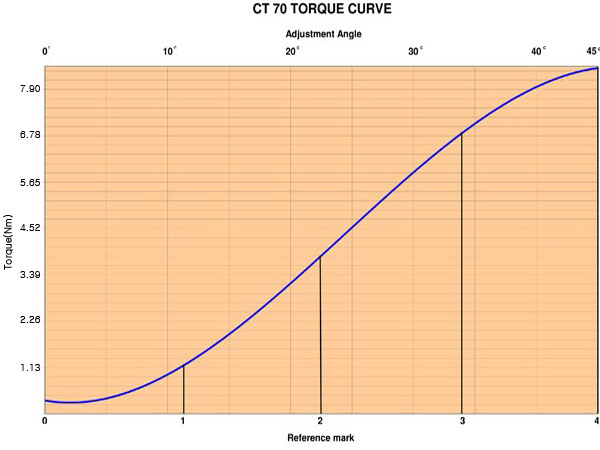

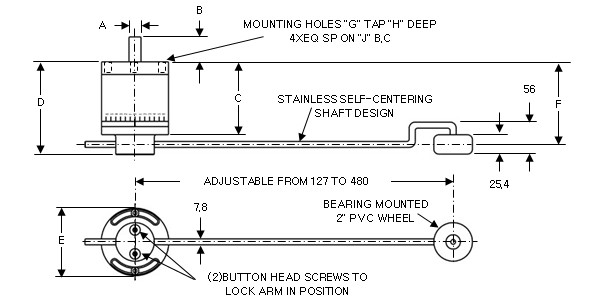

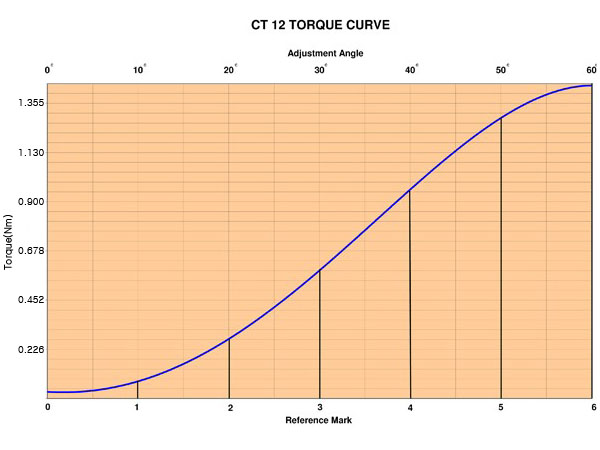

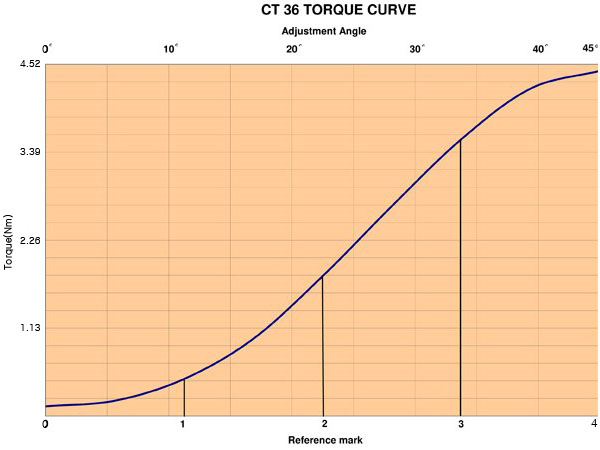

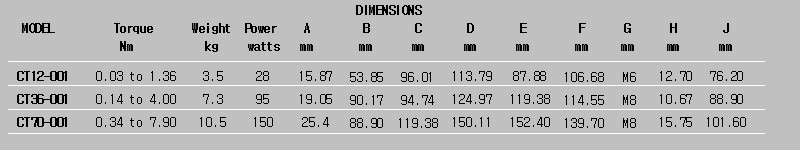

Model : Constant Tension Brake
with Follower ARM
