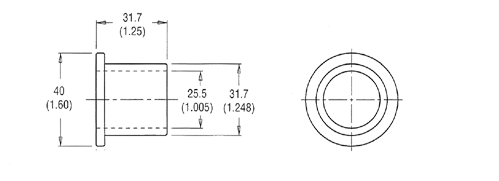

Model 750-184

To mount 1 1/4" reels
on 1" shafts.
Other sizes available



                                  Metric ( mm )                                                    Dimensions                             English (in)                                            Dimensions
Model Fit OD A L B F Model Fit OD A L B F
750-075 655 63.5 25.4 33.2 9.5 Flat 750-075 655 2.50 1.00 1.31 0.375 Flat
750-005 523 82.5 25.4 33.2 9.5 Flat 750-005 523 3.25 1.00 1.31 0.375 Flat
750-076 610 114 30.5 44.5 12.7 1/8" key 750-076 610 4.50 1.20 1.75 0.500 1/8" key
750-077 663 127 34.3 47 19.0 3/16" key 750-077 663 5.00 1.35 1.85 0.750 3/16" key

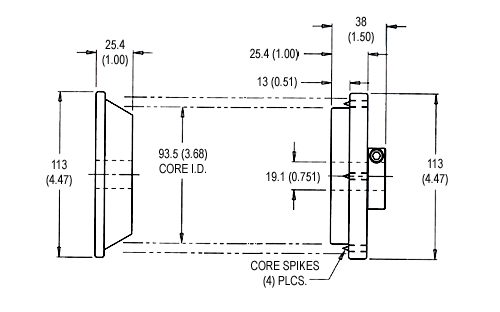

  Model 750-034


Fits 3.86" Cores
3/4" Bore

  Model 750-072

Fits 3.86" Cores
1 " Bore

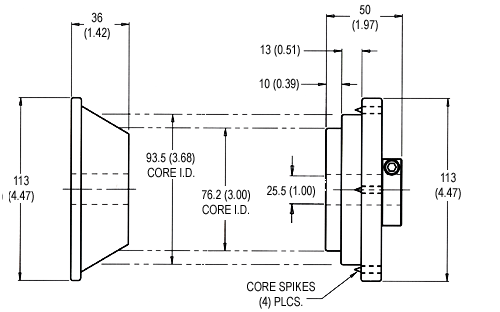

  Model 750-070

Fits both 3.00" and
3.86" Cores
1 " Bore

  Adaptors
