Pin Location (R)          * Stainless pin can be positioned at any "R"
mm 25 30 35 40 45 50 55 60 65 70 75 80 85 90
in 0.984 1.182 1.378 1.575 1.772 1.969 2.165 2.362 2.559 2.756 2.953 3.150 3.347 3.543
                                 Metric ( mm )                             Dimensions                                   English (in)                                                         Dimensions
D A T Model D A T
25.40 44.5 20.6 720-0100 1.000 1.75 0.81
28.00 48.0 23.0 720-0110 1.102 1.89 0.90
31.75 52.3 20.6 720-0125 1.250 2.06 0.81
32.00 45.0 23.0 720-0126 1.259 2.13 0.90
34.93 57.2 22.1 720-0137 1.375 2.25 0.87
35.00 57.0 23.0 720-0138 1.378 2.24 0.90
36.00 57.0 23.0 720-0142 1.417 2.24 0.90
38.10 60.5 22.1 720-0150 1.500 2.38 0.87

Model 720

Drive Plate

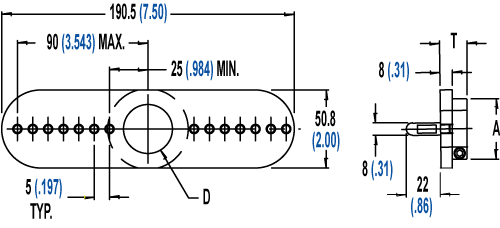

      Model 720 Drive Plate
                                 Metric ( mm )                             Dimensions                                   English (in)                                                         Dimensions
D A T Model D A T
25.40 44.50 17.8 710-040 1.00 1.75 0.70

Model 710

Drive Plate

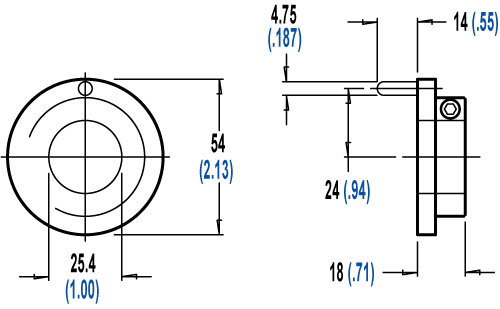

      Model 710 Drive Plate

Pin Location (R)          * Stainless pin can be positioned at any "R"
mm 10 12 14 16 18 20 22 24 26 28 30 32
in 0.393 0.472 0.551 0.630 0.709 0.788 0.866 0.945 1.024 1.103 1.181 1.260
                                 Metric ( mm )                             Dimensions                                   English (in)                                                         Dimensions
D A T Model D A T
11.00 27.9 17.3 705-0433 0.433 1.10 0.68
12.70 28.4 16.8 705-0500 0.500 1.12 0.66
15.00 34.0 19.3 705-0591 0.591 1.34 0.76
15.88 33.3 17.5 705-0625 0.625 1.31 0.69
16.00 34.0 19.3 705-0630 0.630 1.34 0.76
19.05 38.1 19.1 705-0750 0.750 1.50 0.75
20.00 40.0 21.3 705-0787 0.787 1.57 0.84
22.00 42.0 21.3 705-0866 0.866 1.65 0.84
22.23 41.1 19.1 705-0875 0.875 1.62 0.75
25.00 45.0 21.3 705-0984 0.984 1.77 0.84
25.40 44.5 19.1 705-0100 1.000 1.75 0.75

Model 705

Drive Plate

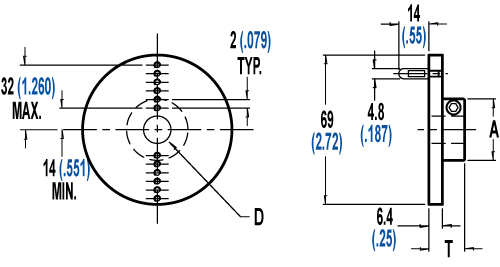

      Model 705 Drive Plate
