| < mm 단위 > | ||||||||||

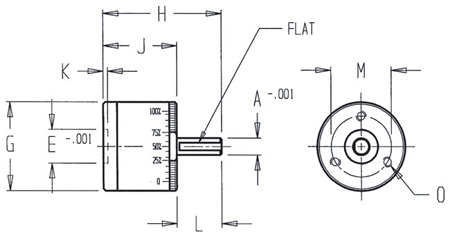

| Model | A | E | F | G | H | J | K | L | M | O |
| 1035-3/16 | 4.750 | 10.0 | - | 25.9 | 34.6 | 21.0 | 1.0 | 13.5 | 15.5 | M3 x 4.5 DP |
| 1035-001 | 5.000 | |||||||||
|
|
||||||||||
|
< inch 단위 > |
||||||||||
| Model | A | E | F | G | H | J | K | L | M | O |
| 1035-3/16 | 0.187 | 0.394 | - | 1.02 | 1.36 | 0.83 | 0.04 | 0.53 | 0.610 | M3 x 0.177 DP |
| 1035-001 | 0.197 | |||||||||
Technical Data :
Screws (both sides)
Model : 1035(Shaft
Design)
Type
